Entrance Sign Field Wiring

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Entrance Sign	Bay Box	18X09.3		32A16.24V	Entrance Sign	24 VAC
Entrance Sign	Bay Box	18X03.12		32A16.N	Entrance Sign	24 VAC
Entrance Sign	Bay Box	23N02.1A		32A16.J1.3	Entrance Sign	24 VAC
Entrance Sign	Bay Box	23N02.2A		32A16.J1.2	Entrance Sign	24 VAC

Countdown Timer

StandardDeluxe

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Countdown Timer	Bay Box	18X04.4		33A18.J6.1	Countdown Timer	24 VAC
Countdown Timer	Bay Box	18X03.16		33A18.J6.2	Countdown Timer	24 VAC
Countdown Timer	Bay Box	23N05.6A		33A18.J2.2	Countdown Timer	24 VAC
Countdown Timer	Bay Box	23N05.6B		33A18.J2.3	Countdown Timer	24 VAC

Inbay Sign Field Wiring

Basic / DeluxeAdvanced

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Inbay Sign (Basic or Deluxe)	Bay Box	22A13.J5		28B10 or 29B10	Inbay Sign
Inbay Sign (Basic or Deluxe)	Bay Box	18X08.4		28A13.24P-B	Inbay Sign	24 VAC
Inbay Sign (Basic or Deluxe)	Bay Box	18X03.8		28A13.24N	Inbay Sign	24 VAC
Inbay Sign (Basic or Deluxe)	Bay Box	22A13.1		RS-485.A	Inbay Sign	12 VDC
Inbay Sign (Basic or Deluxe)	Bay Box	22A13.2		RS-485.B	Inbay Sign	12 VDC
Inbay Sign (Basic or Deluxe)	Bay Box	22A13.3			Inbay Sign	12 VDC

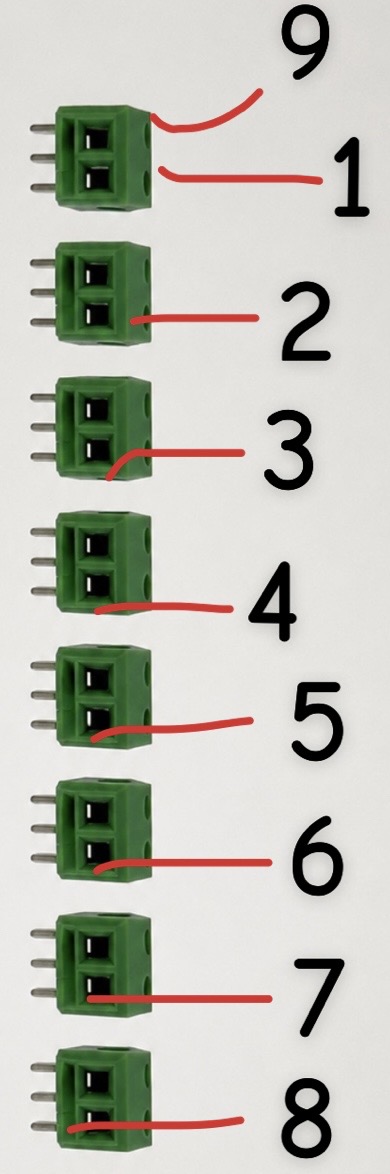

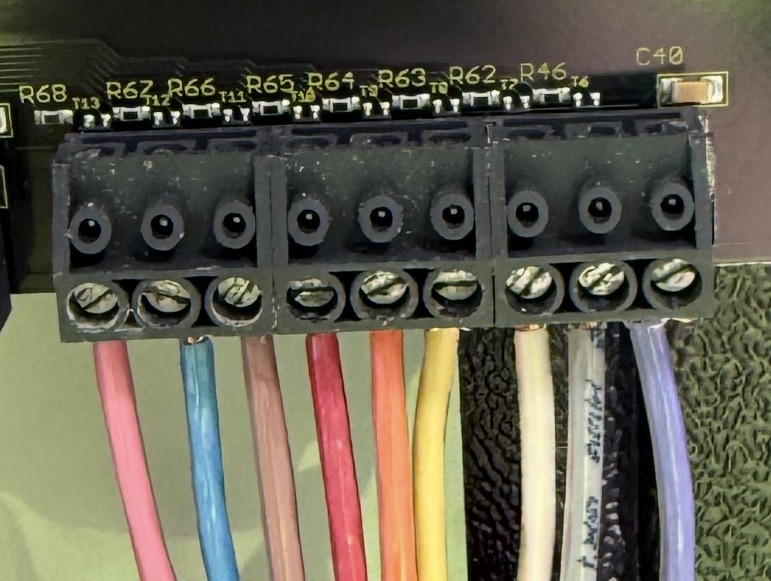

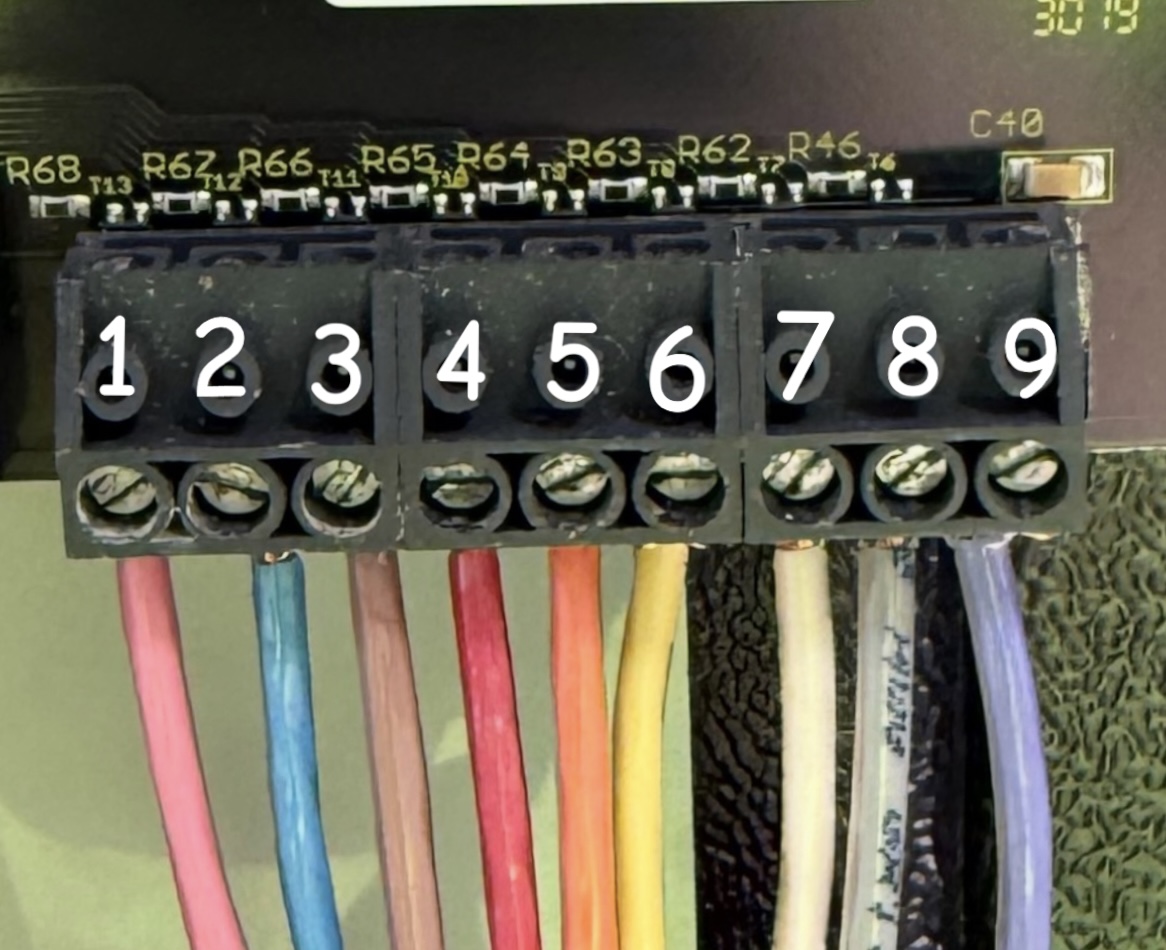

Confirmation Sign

Stand Alone Dryer

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Stand Alone Dryer Motor Starters	Bay Box	23N05.2A		DRYER #1.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	23N05.3A		DRYER #2.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	23N05.4A		DRYER #3.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	23N05.5A		DRYER #4.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	23N03.4A		DRYER #5.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	23N03.5A		DRYER #6.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC
Stand Alone Dryer Motor Starters	Bay Box	18X03.20		DRYER #8.A1	Stand Alone Dryer Motor Starter Control Enclosure	24 VAC

Enter Door - Open/Close

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Enter Door Open/Close	Bay Control Panel	23N21.1A		ENTER OPEN	Enter Door
Enter Door Open/Close	Bay Control Panel	23N21.2A		ENTER CLOSE	Enter Door
Enter Door Open/Close	Bay Control Panel	18X40.4		ENTER COM	Enter Door

Enter Door - Photo Eye

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Enter Door Photo Eye	Bay Control Panel	23N12.TB2.1A		EYE 12VDC+ BN	Enter Door	12 VDC
Enter Door Photo Eye	Bay Control Panel	23N12.TB2.1C		EYE 0VDC- BU	Enter Door	12 VDC
Enter Door Photo Eye	Bay Control Panel	23N12.TB2.1B		EYE SIGNAL WH	Enter Door	12 VDC

Exit Door - Open/Close

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Exit Door Open/Close	Bay Control Panel	23N21.3A		EXIT OPEN	Exit Door
Exit Door Open/Close	Bay Control Panel	23N21.4A		EXIT CLOSE	Exit Door
Exit Door Open/Close	Bay Control Panel	18X41.4		EXIT COM	Exit Door

Exit Door - Photo Eye

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Exit Door Photo Eye	Bay Control Panel	23N12.TB2.4A		EYE 12VDC+ BN	Exit Door	12 VDC
Exit Door Photo Eye	Bay Control Panel	23N12.TB2.4C		EYE 0VDC- BU	Exit Door	12 VDC
Exit Door Photo Eye	Bay Control Panel	23N12.TB2.4B		EYE SIGNAL WH	Exit Door	12 VDC

Bay Temperature Sensor

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Temperature Sensor	Bay Box	23N01.TB2.10B		RED	Bay Temperature Sensor	12 VDC
Temperature Sensor	Bay Box	23N01.TB2.10C		BLK	Bay Temperature Sensor	12 VDC
Temperature Sensor	Bay Box	23N01.TB2.10C		SHIELD	Bay Temperature Sensor	12 VDC

Outside Temperature Sensor

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Temperature Sensor	Bay Box	23N01.TB2.9B		RED	Outside Temperature Sensor	12 VDC
Temperature Sensor	Bay Box	23N01.TB2.9C		BLK	Outside Temperature Sensor	12 VDC
Temperature Sensor	Bay Box	23N01.TB2.9C		SHIELD	Outside Temperature Sensor	12 VDC

Bay Ultrasonic Sensors (Side Measure)

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Left Measurement Ultrasonic	Bay Box	23N01.TB4.2A		BLK	24B35	12 VDC
Left Measurement Ultrasonic	Bay Box	23N01.TB4.2B		BLU	24B35	12 VDC
Left Measurement Ultrasonic	Bay Box	23N01.TB4.2C		SHLD	24B35	12 VDC
Right Measurement Ultrasonic	Bay Box	23N01.TB4.4A		BLK	24B43	12 VDC
Right Measurement Ultrasonic	Bay Box	23N01.TB4.4B		BLU	24B43	12 VDC
Right Measurement Ultrasonic	Bay Box	23N01.TB4.4C		SHLD	24B43	12 VDC

Wash Activation

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Wash Activation Control Enclosure	Bay Box	18X06.4		1X01.4	Wash Activation Box	24 VAC
Wash Activation Control Enclosure	Bay Box	18X03.15		1X02.4	Wash Activation Box	24 VAC
Wash Activation Control Enclosure	Bay Box	18X00.3		PANEL GND	Wash Activation Box	24 VAC

Low Voltage - Pump Station to E-Chain Junction Box

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Bridge Low Voltage Supply	Pump Station	8F05.2		24V-A	E-Chain Junction Box	24 VAC
Bridge Low Voltage Supply	Pump Station	9F05.2		24V-B	E-Chain Junction Box	24 VAC
Bridge Low Voltage Supply	Pump Station	3X21.3		N	E-Chain Junction Box	24 VAC
Bridge Low Voltage Supply	Pump Station	3X03.3		SYS STOP	E-Chain Junction Box	24 VAC

Low Voltage - E-Chain Junction Box to Bridge Box

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Bridge Low Voltage Supply	E-Chain Junction Box	24V-A		45F06.1	Bridge Control Enclosure	24 VAC
Bridge Low Voltage Supply	E-Chain Junction Box	24V-B		46F05.1	Bridge Control Enclosure	24 VAC
Bridge Low Voltage Supply	E-Chain Junction Box	N		39X09.1	Bridge Control Enclosure	24 VAC
Bridge Low Voltage Supply	E-Chain Junction Box	SYS STOP		39X05.1	Bridge Control Enclosure	24 VAC
Bridge Low Voltage Supply	E-Chain Junction Box	GND		39XGND.1	Bridge Control Enclosure	24 VAC

Low Voltage - Pump Station to Bay Box

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
Bay Box Low Voltage Supply	Pump Station	8F02.2		18X01.4	Bay Box Control Enclosure	24 VAC
Bay Box Low Voltage Supply	Pump Station	9F02.2		18X02.4	Bay Box Control Enclosure	24 VAC
Bay Box Low Voltage Supply	Pump Station	3X21.4		18X03.4	Bay Box Control Enclosure	24 VAC
Bay Box Low Voltage Supply	Pump Station	2X08.4		18X00.1	Bay Box Control Enclosure	24 VAC

System Stop Circuit - Pump Station to System Stop Box (Standard)

Component	From Enclosure	From Terminal #	Wire #	To Terminal #	To Enclosure	Voltage
System Stop Circuit	Pump Station	3X02.3		8S37.1AC	System Stop Enclosure	24 VAC
System Stop Circuit	Pump Station	3X03.1		8S37.2AC	System Stop Enclosure	24 VAC
System Stop Circuit	Pump Station	3X04.1		8S37.1DC	System Stop Enclosure	12 VDC
System Stop Circuit	Pump Station	3X08.4		8S37.2DC	System Stop Enclosure	12 VDC
